Managing Server Patching at Scale with Azure Update Manager

I used Azure Update Manager to centralize OS patching across Azure VMs and Azure Arc-enabled servers. I set up assessment, recurring maintenance schedules, Azure Policy onboarding, reporting, and staged rollouts.

Portal screens, pricing, supported regions, and service behavior change. The screenshots show my environment at the time. Check current Microsoft docs before building a production process from these exact settings.

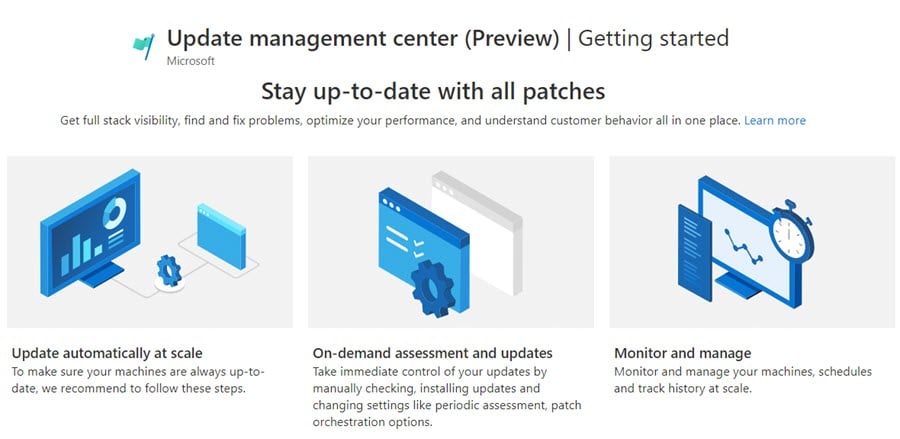

The shots come from a few test runs. Machine counts and VM names differ between them. Early shots also show the old name, Update management center (Preview). It is the same tool.

Where Update Manager fits

With IaaS, Azure runs the platform but patching the guest OS is on me. Update Manager gives me one place to assess and install those updates.

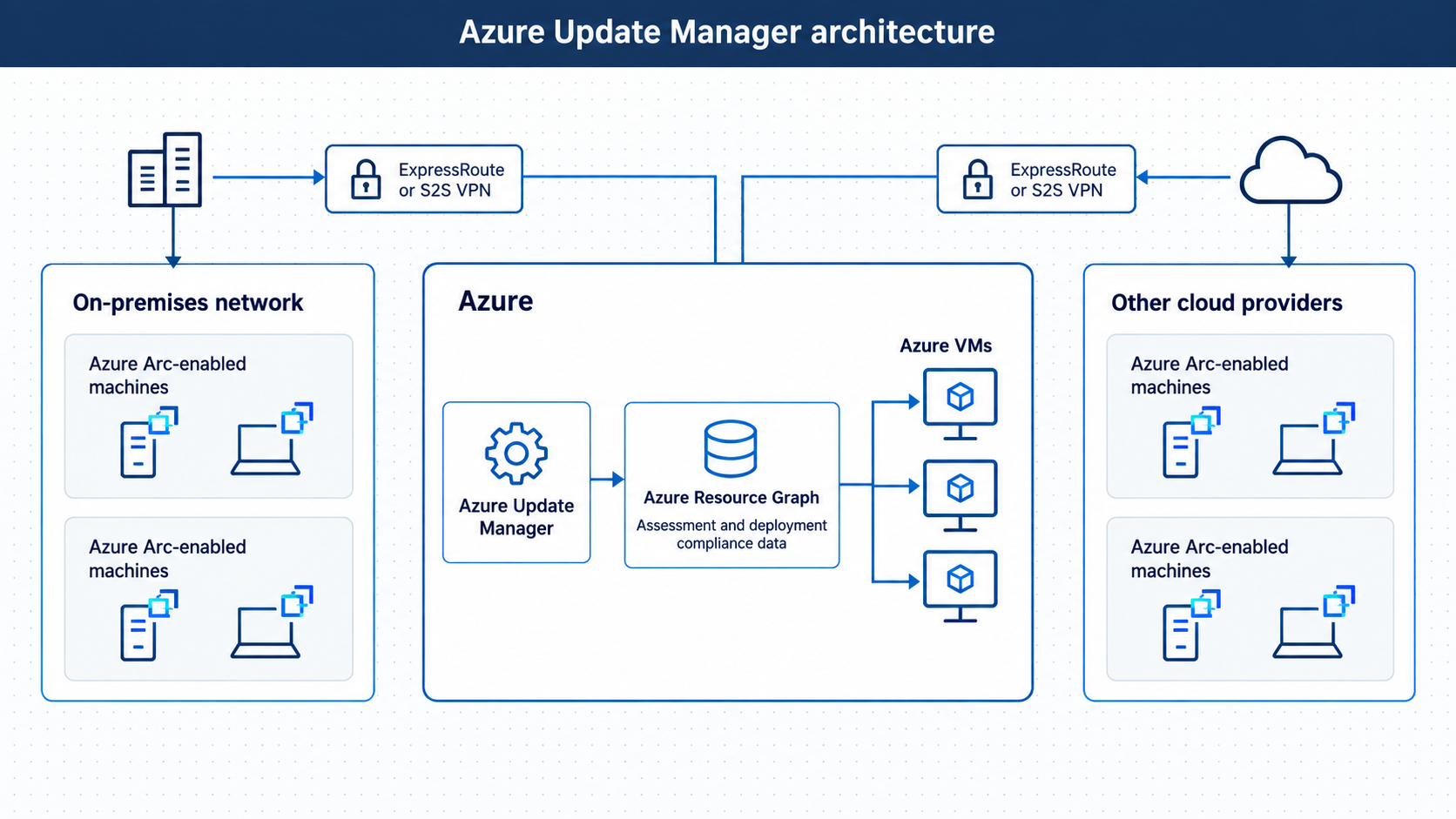

Azure VMs use the Azure VM agent. Servers outside Azure can join once they’re connected through Azure Arc. The old Automation Update Management is retired. The new model doesn’t need that same Automation Account and Log Analytics setup.

What I checked first

Before setting anything up, I made sure I had:

• An Azure subscription and an appropriate management scope
• Owner or Contributor permissions for the configuration work
• Supported Azure VMs or Azure Arc-enabled servers
• A working Azure VM agent on Azure machines
• Supported operating systems and regions

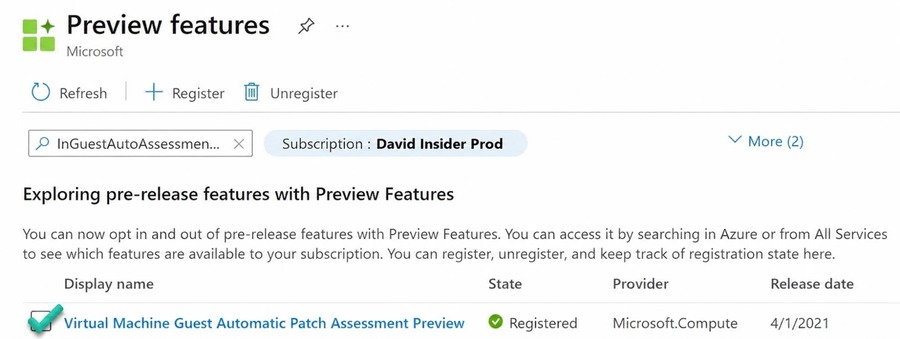

The older setup had a feature registration step for guest automatic patch assessment. I kept the screenshot for reference. It isn’t part of normal onboarding anymore.

1. Checking machines and compliance

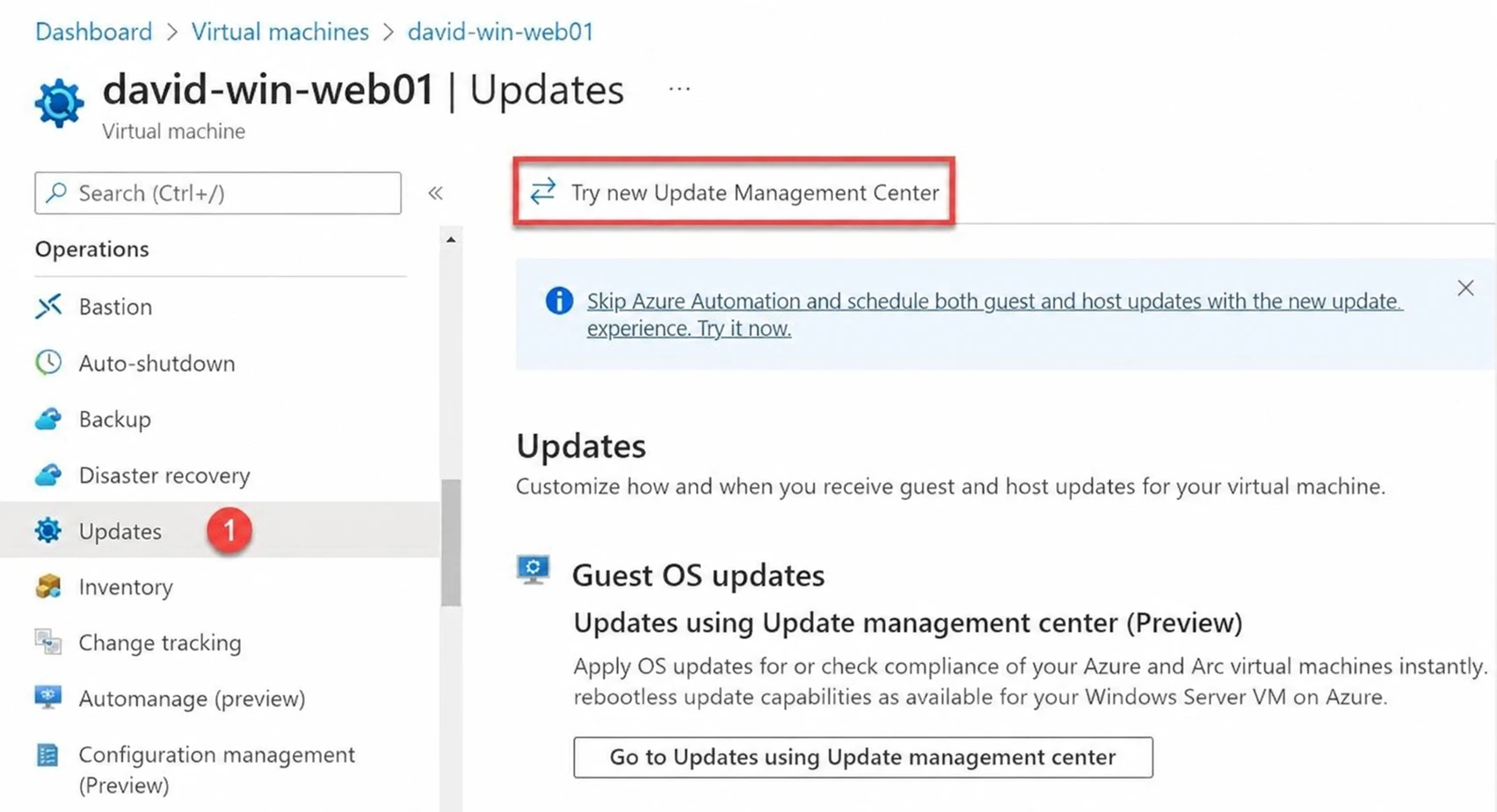

For a single VM, I could open it and go to its update page.

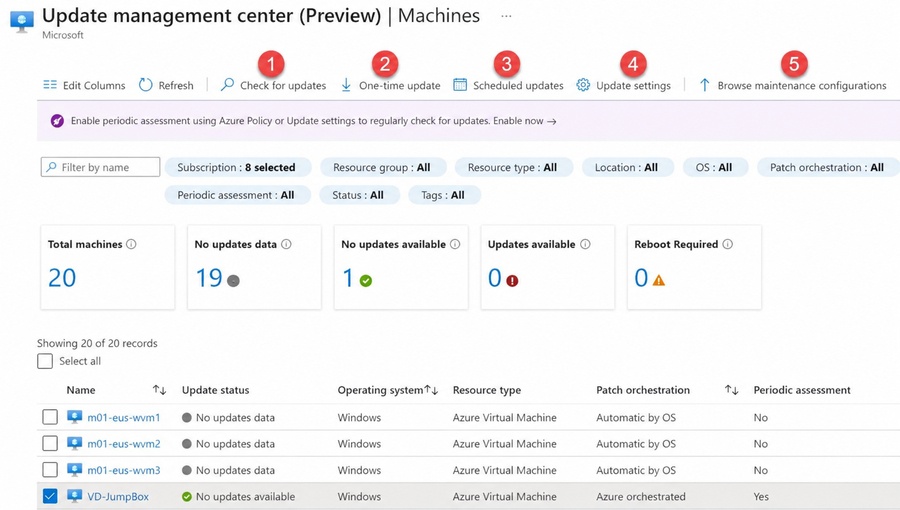

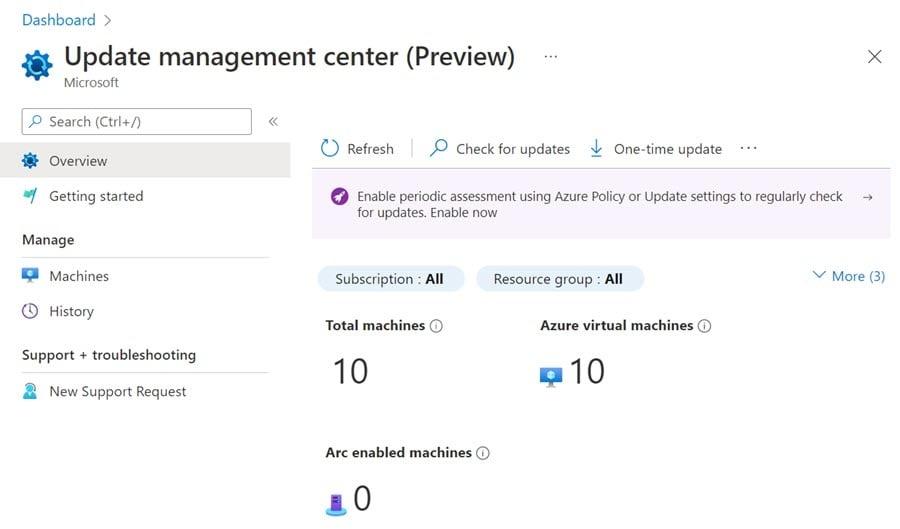

For the whole fleet, I opened Update Manager in the portal.

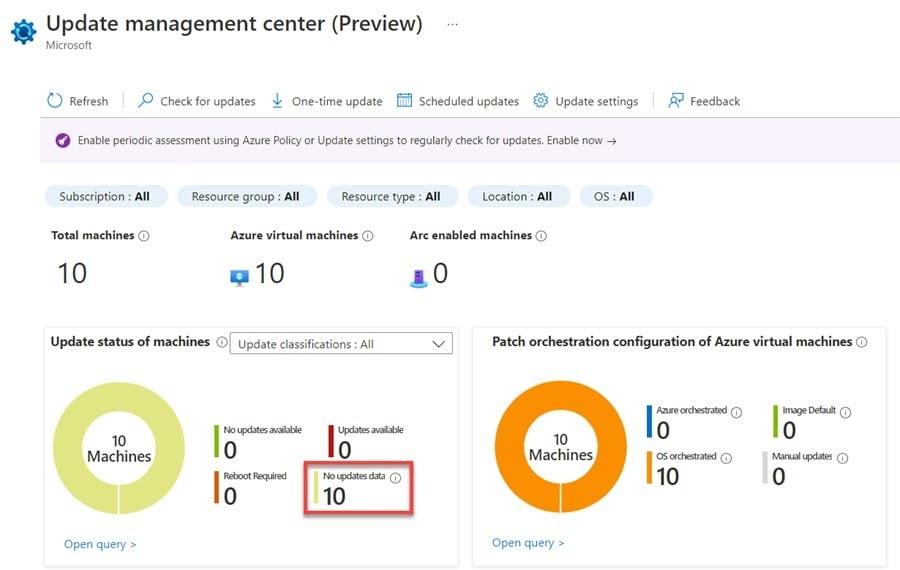

The overview filters by subscription, resource group, location, and machine type. Machines with no recent assessment stood out right away.

2. Turning on periodic assessment

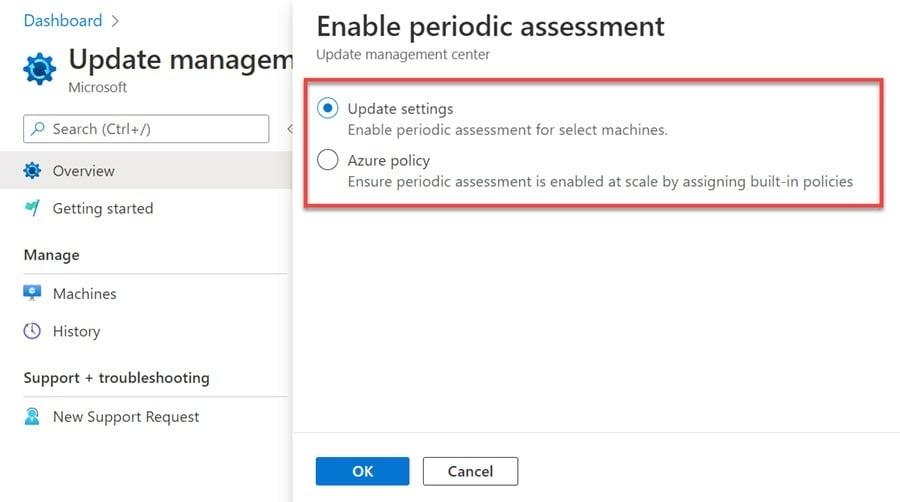

Periodic assessment checks machines for missing updates on a regular basis. I could turn it on for specific machines or use Azure Policy across a wider scope.

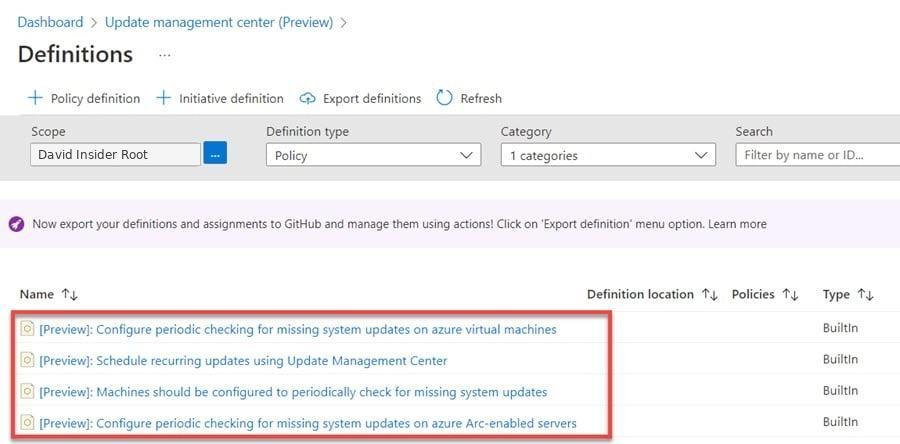

Update Manager has built-in policies for Azure VMs and Arc-enabled servers.

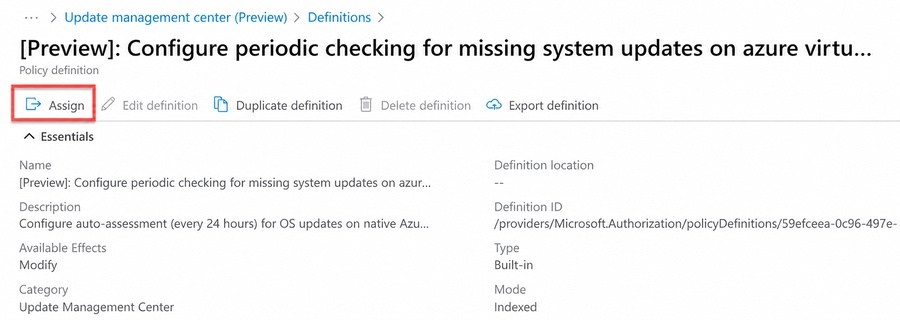

When assigning the policy, I picked the management group, subscription, or resource group.

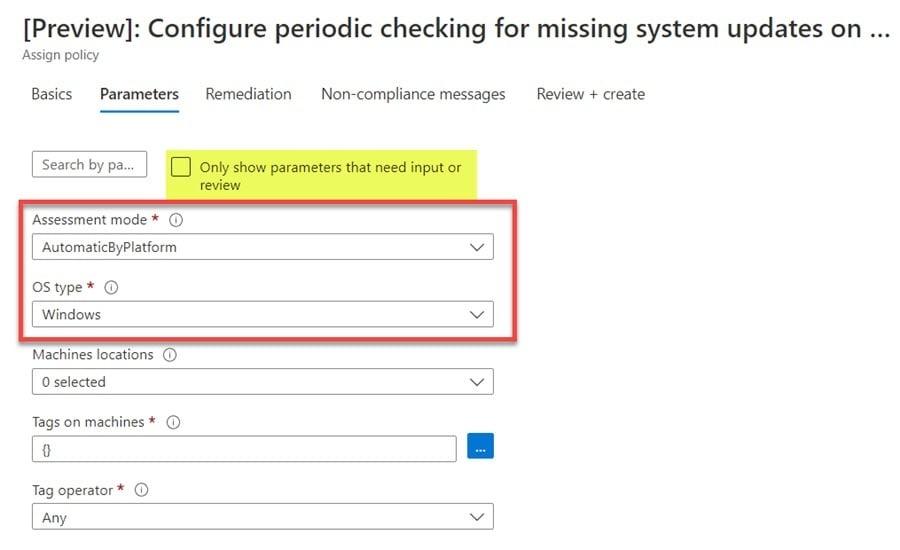

I set the assessment mode to AutomaticByPlatform and picked the OS type. Windows and Linux may need separate assignments.

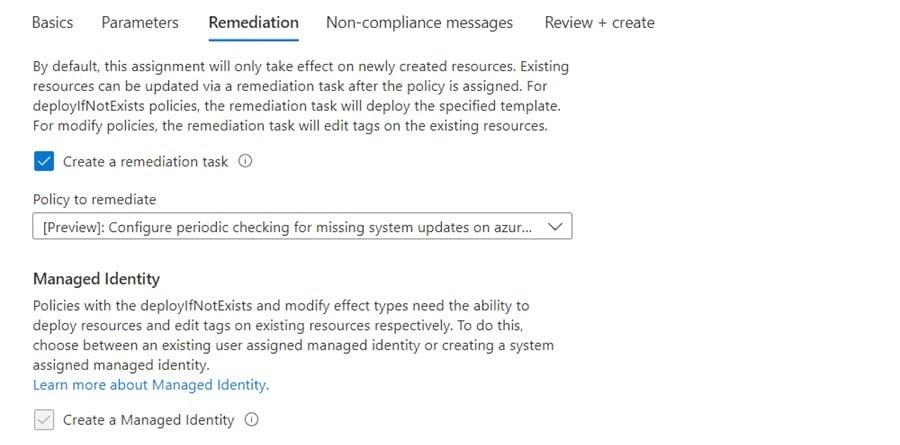

For existing resources, I created a remediation task so the policy would actually apply the setting.

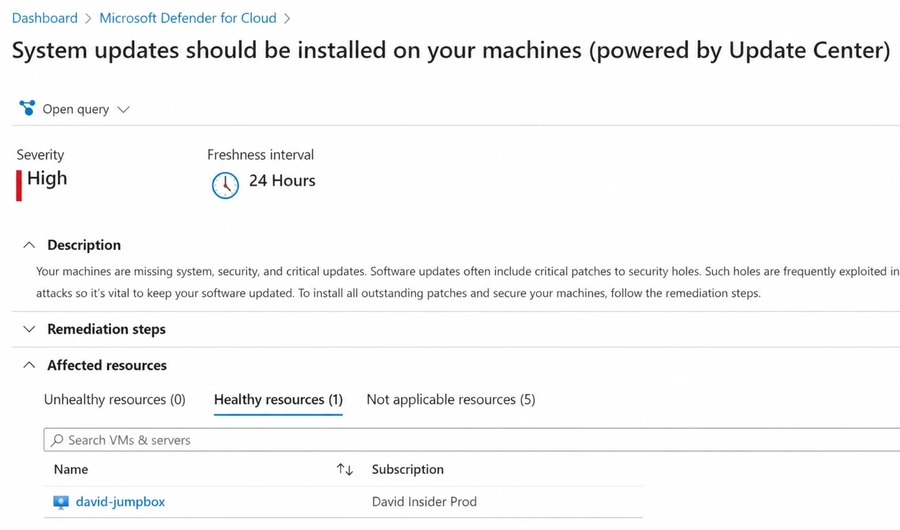

Azure Policy then showed me which machines didn’t match the expected config.

3. Changing update settings

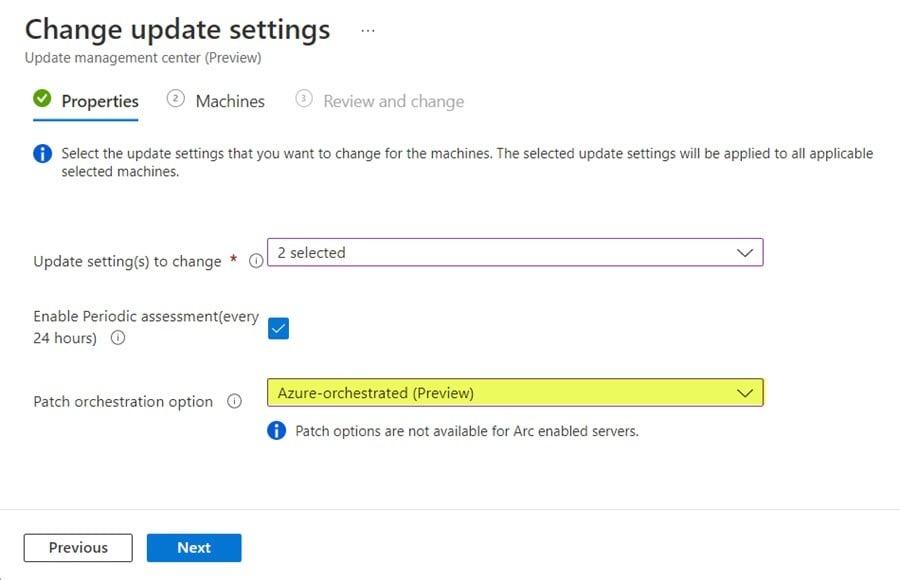

I could also change settings right from Update Manager.

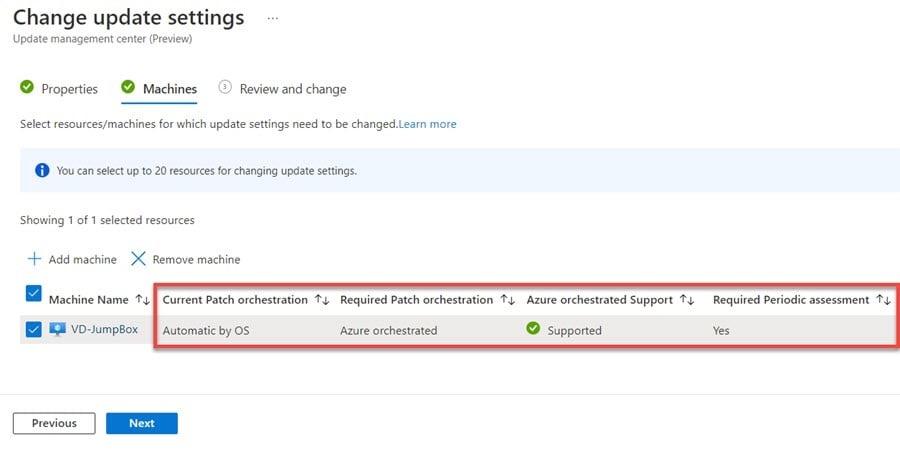

I added the machines I wanted to configure.

Then I reviewed the list and confirmed the assessment and orchestration settings.

For customer-managed schedules on Azure VMs, these settings matter:

Patch mode = AutomaticByPlatform
BypassPlatformSafetyChecksOnUserSchedule = True

4. Building a recurring schedule

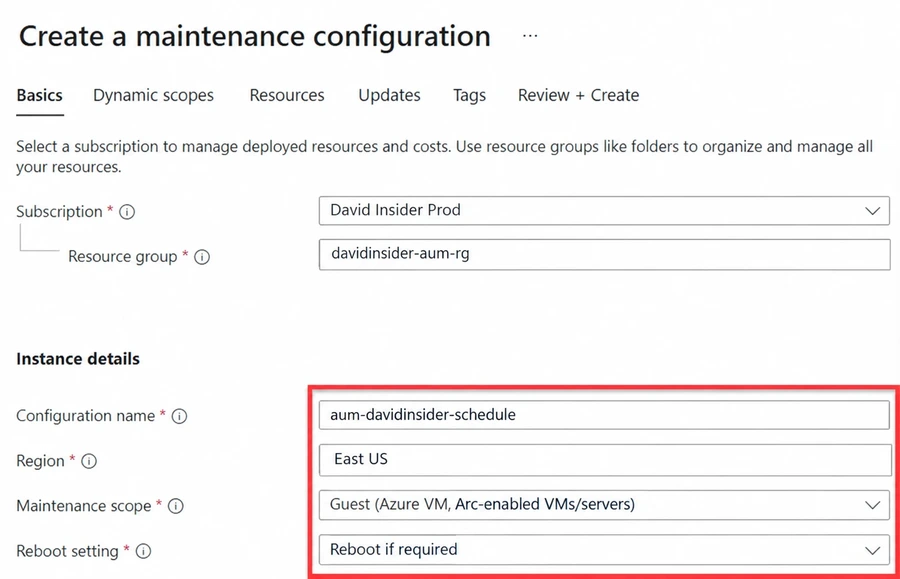

Recurring deployments use maintenance configurations. I created one that set the patch scope and maintenance window.

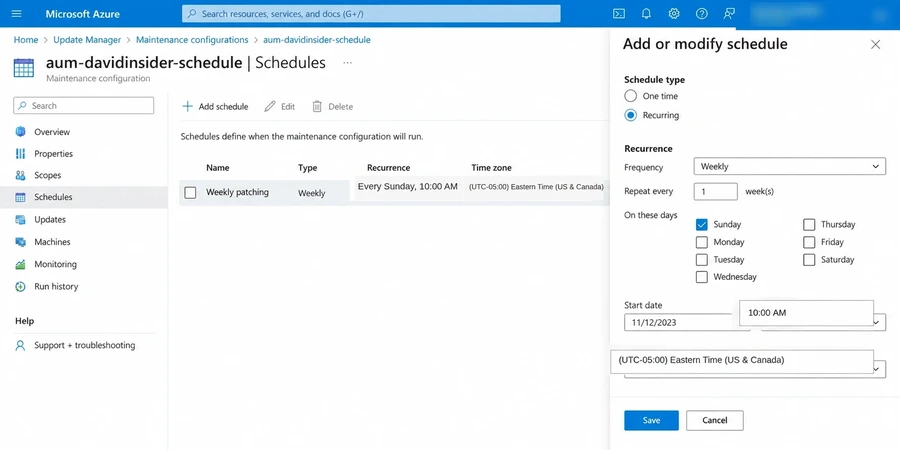

I picked a recurrence and window that fit. It could be weekly, monthly, or lined up with Patch Tuesday.

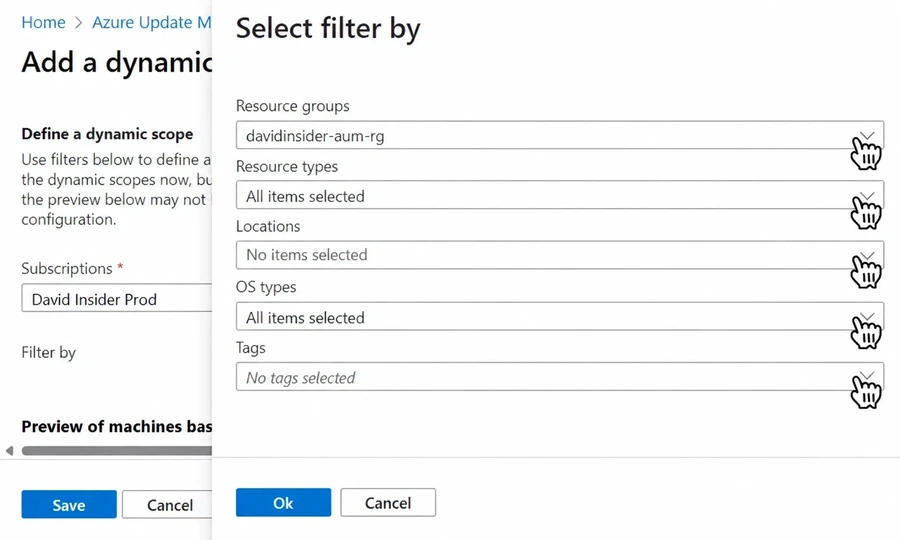

Dynamic scope picks machines by their properties. I didn’t have to maintain a fixed list by hand.

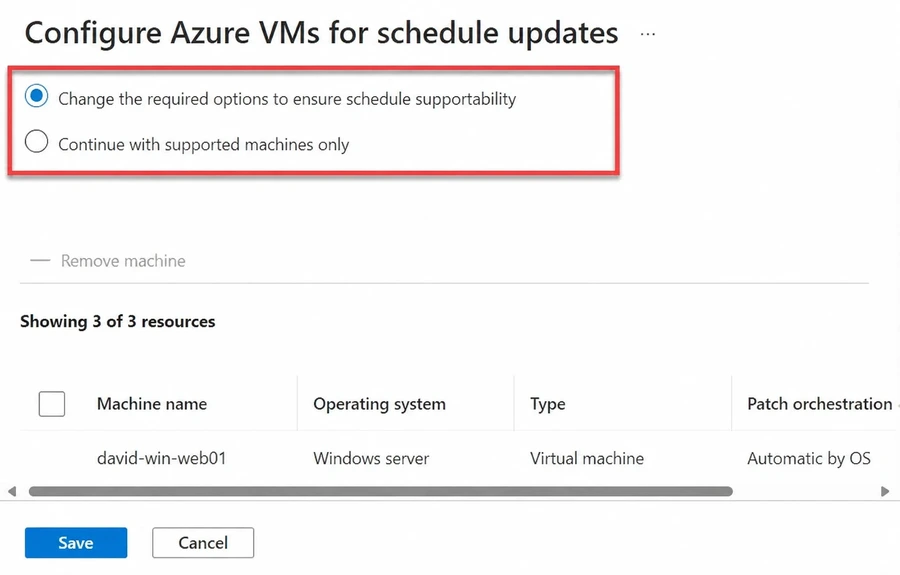

I added the Azure VMs and checked that their patch orchestration settings supported a customer-managed schedule.

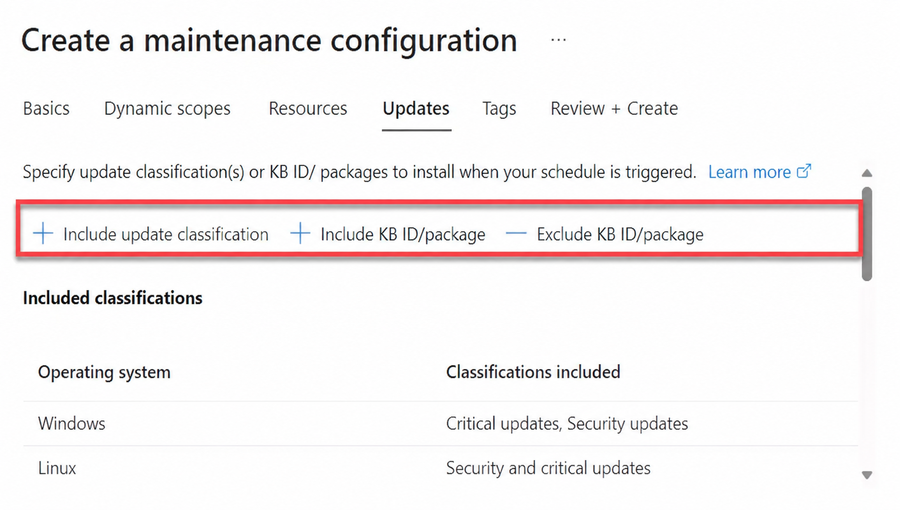

Next I chose the update classifications and any specific KBs or packages to include.

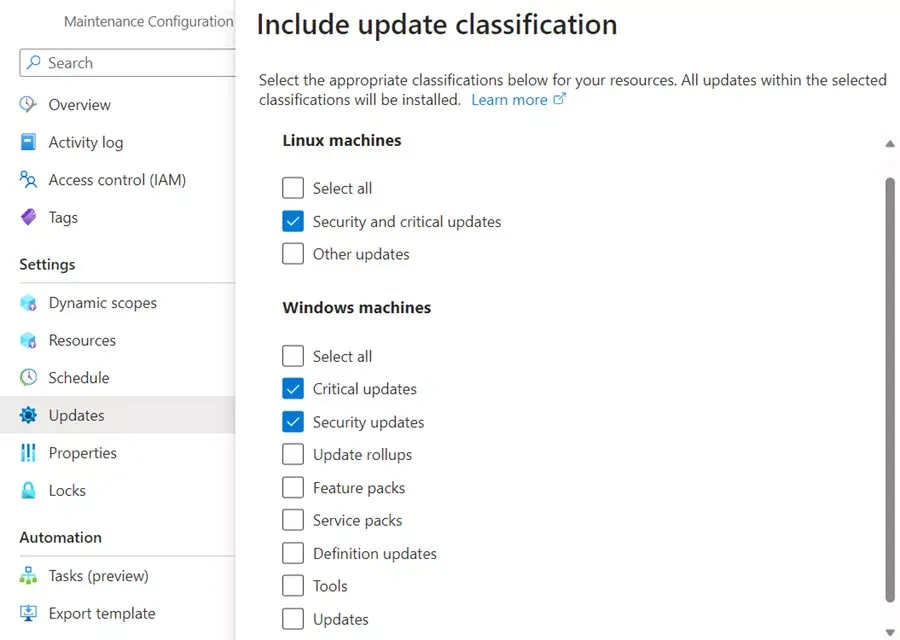

I could also exclude classifications, KBs, or packages that shouldn’t install in this window.

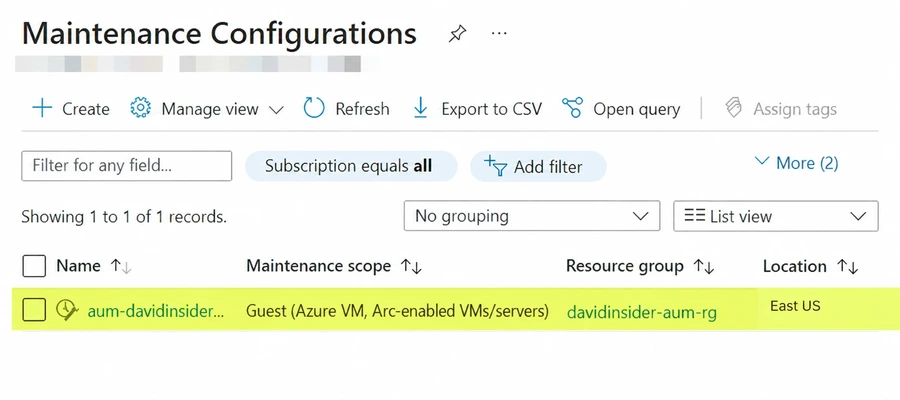

Once created, the maintenance configuration became a reusable schedule.

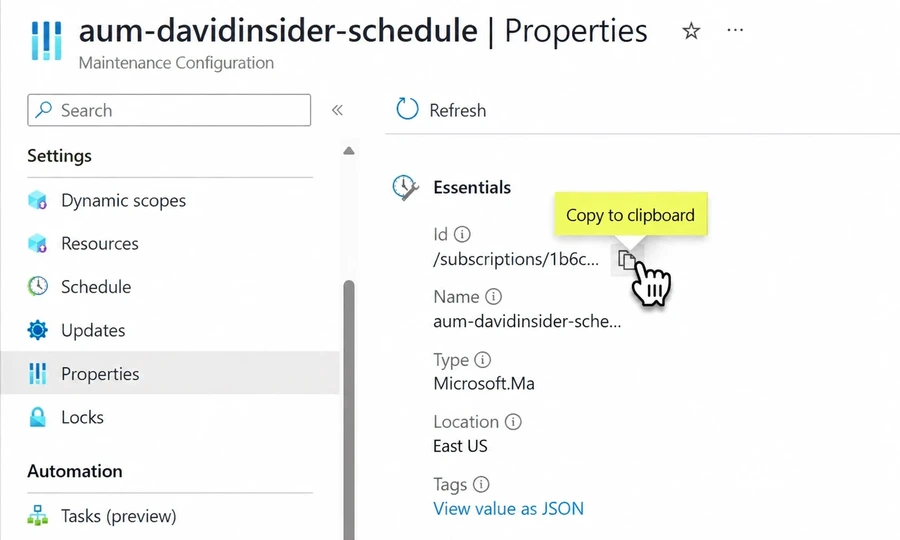

I saved its Resource Manager ID. Policies and automation use it to point at the schedule.

5. Enrolling machines with Azure Policy

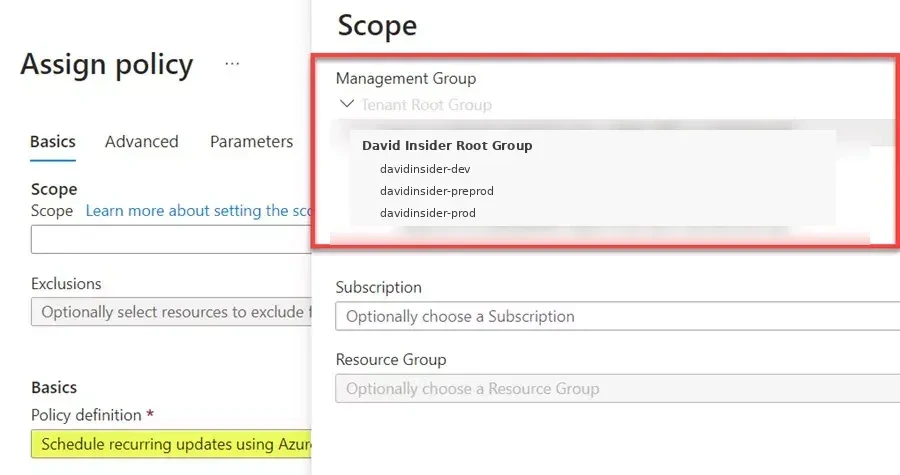

For a bigger environment, I used policy to link qualifying machines to the schedule. A management group assignment applies the same standard across many subscriptions.

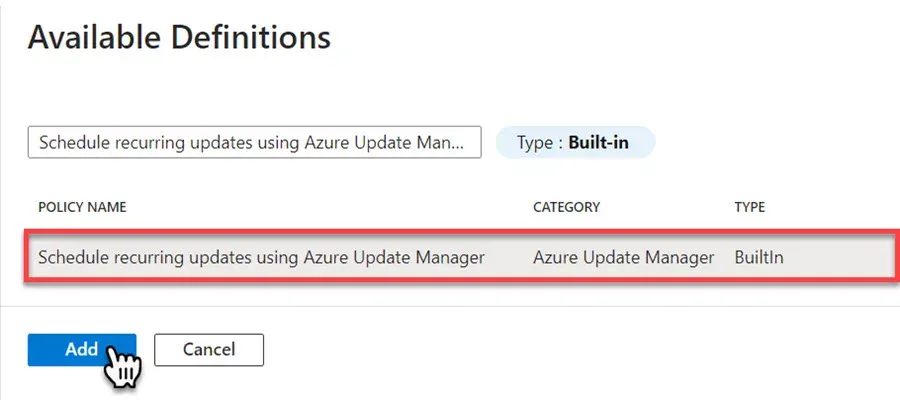

I picked the built-in policy for recurring updates.

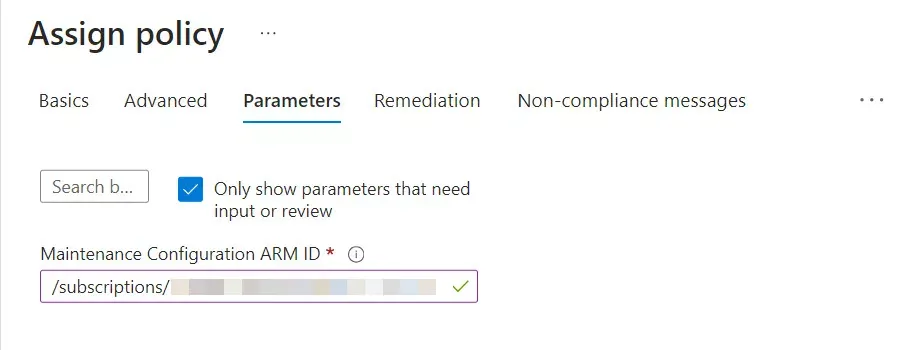

It needed the maintenance configuration’s resource ID.

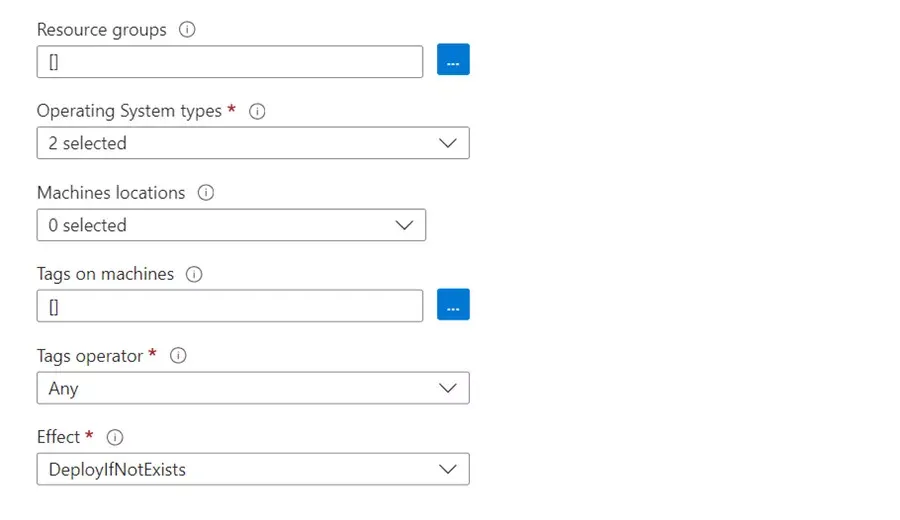

I read the optional filters carefully. They decide which resources qualify.

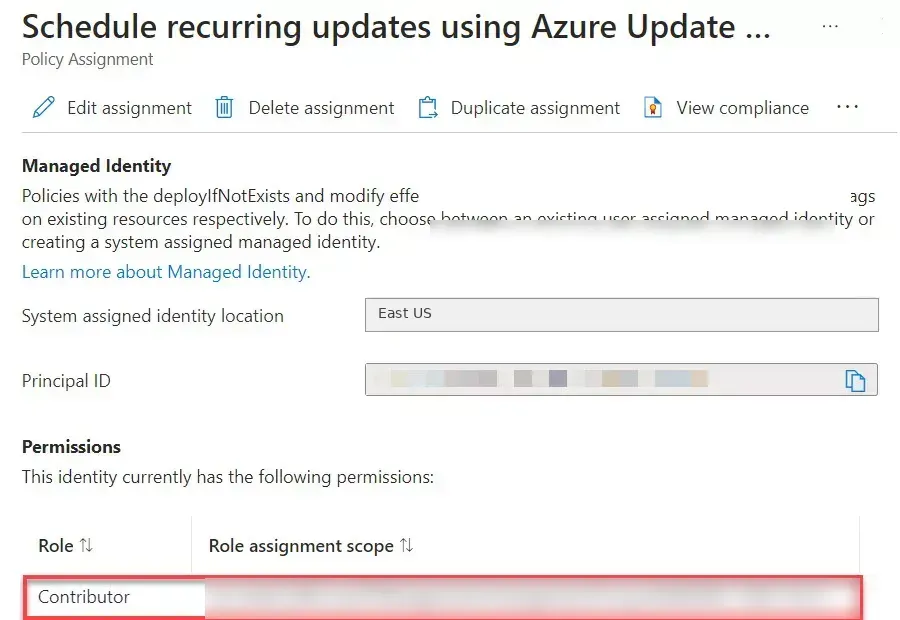

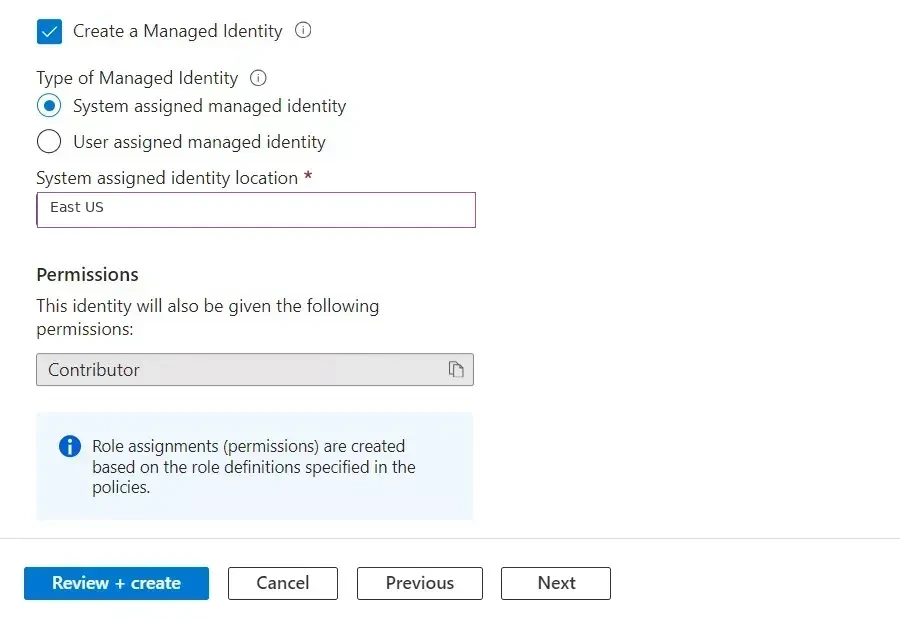

Remediation needed to create assignments, so I created a managed identity for the policy assignment.

I gave that identity Contributor.

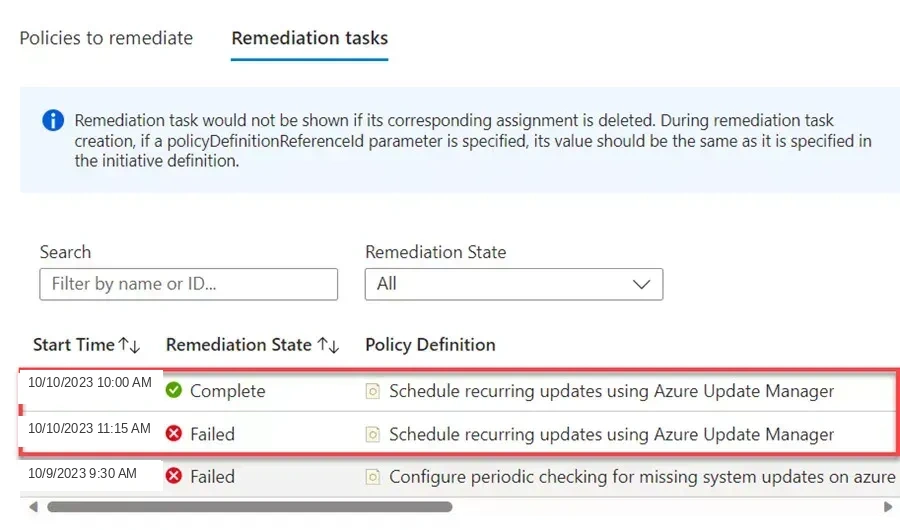

In production I’d swap that for a custom role with only the actions remediation needs. After deploying, I checked the remediation tasks. One completed and one failed, so I looked into the failure before trusting the schedule.

6. Monitoring results

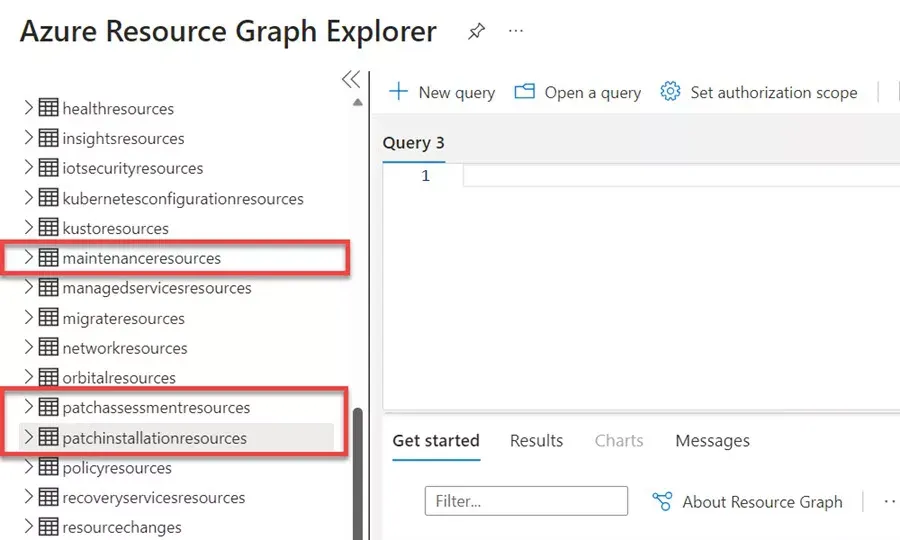

Update Manager exposes its data through Azure Resource Graph.

Three useful categories:

Patchassessmentresources
Patchinstallationresources
Maintenanceresources

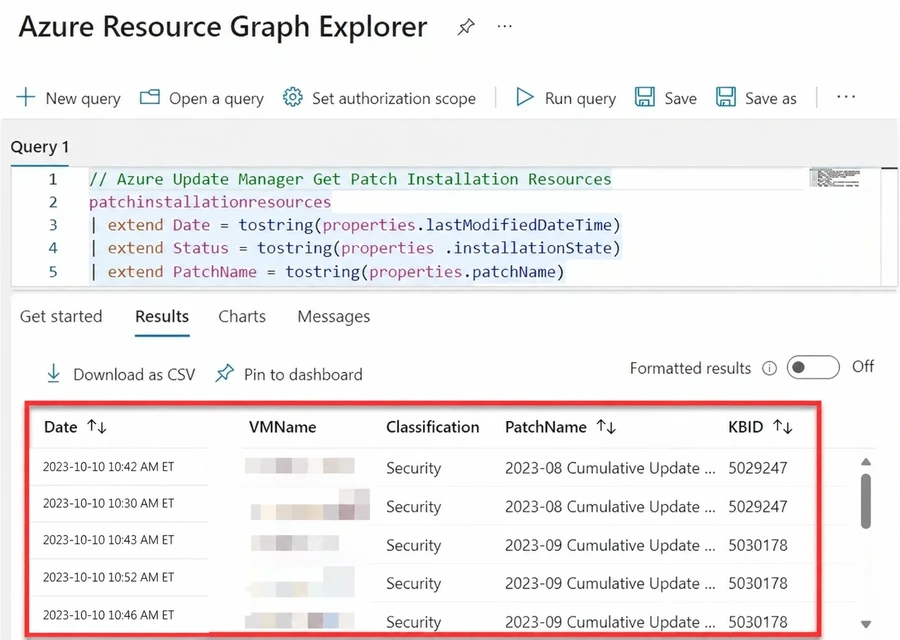

I used this query to see installed patches:

patchinstallationresources
| extend Date = tostring(properties.lastModifiedDateTime)
| extend Status = tostring(properties.installationState)
| extend PatchName = tostring(properties.patchName)
| extend KBID = tostring(properties.kbId)
| extend ID = split(id,"/")
| extend VMName = ID[8]
| mv-expand Classification = properties.classifications
| where Status == "Installed"
| project Date, VMName, Classification, PatchName, KBID

To find machines with failures or warnings in the last day:

patchinstallationresources
| where type in~ ("microsoft.compute/virtualmachines/patchinstallationresults",
                  "microsoft.hybridcompute/machines/patchinstallationresults")
| where properties.status in~ ("Failed", "CompletedWithWarnings")
| where properties.lastModifiedDateTime > ago(1d)
| parse id with vmResourceId "/patchInstallationResults" *
| project vmResourceId
| distinct vmResourceId

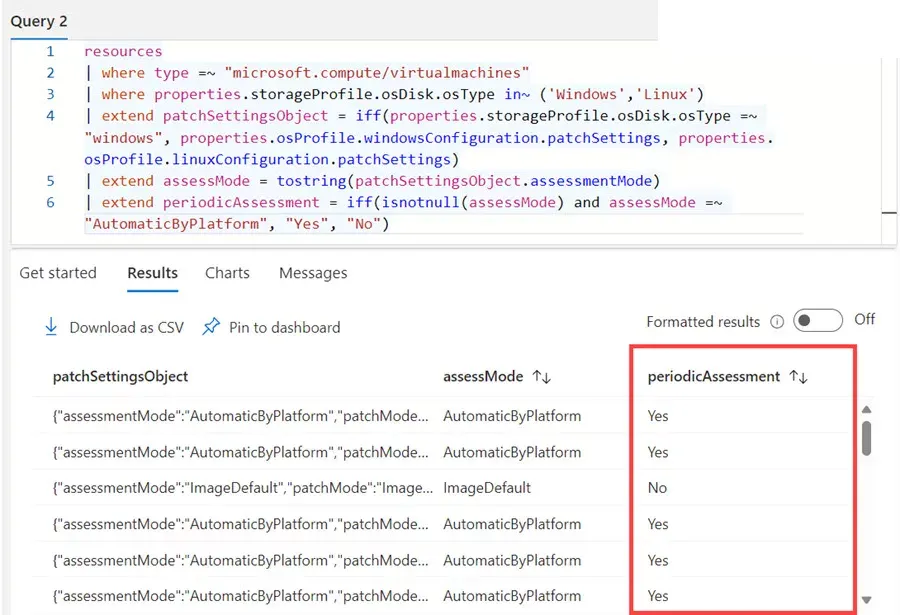

And to see which VMs had periodic assessment on:

resources
| where type =~ "microsoft.compute/virtualmachines"
| where properties.storageProfile.osDisk.osType in~ ('Windows','Linux')
| extend patchSettingsObject =
    iff(properties.storageProfile.osDisk.osType =~ "windows",
        properties.osProfile.windowsConfiguration.patchSettings,
        properties.osProfile.linuxConfiguration.patchSettings)
| extend assessMode = tostring(patchSettingsObject.assessmentMode)
| extend periodicAssessment =
    iff(isnotnull(assessMode) and assessMode =~ "AutomaticByPlatform", "Yes", "No")

An Azure Workbook gave me a more visual summary.

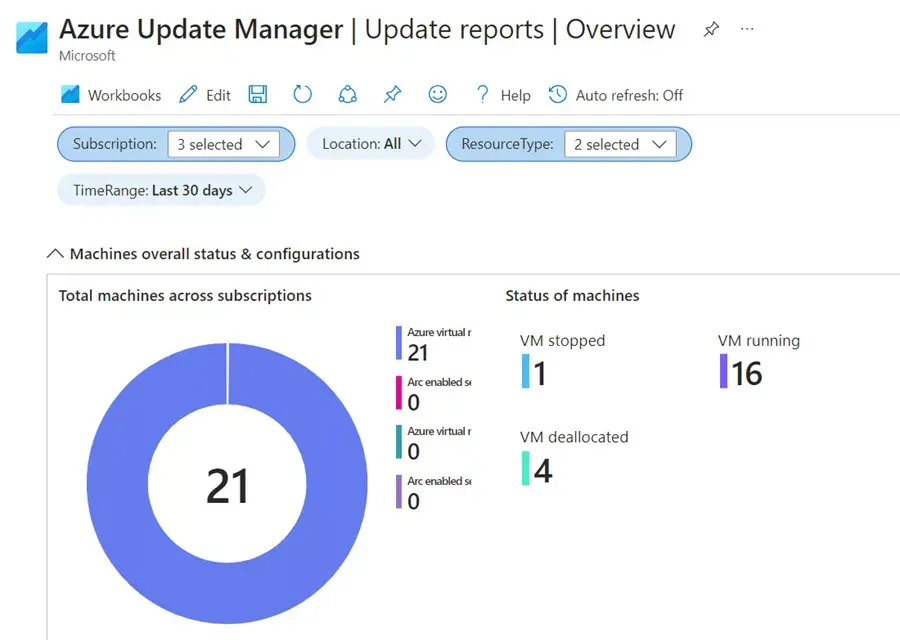

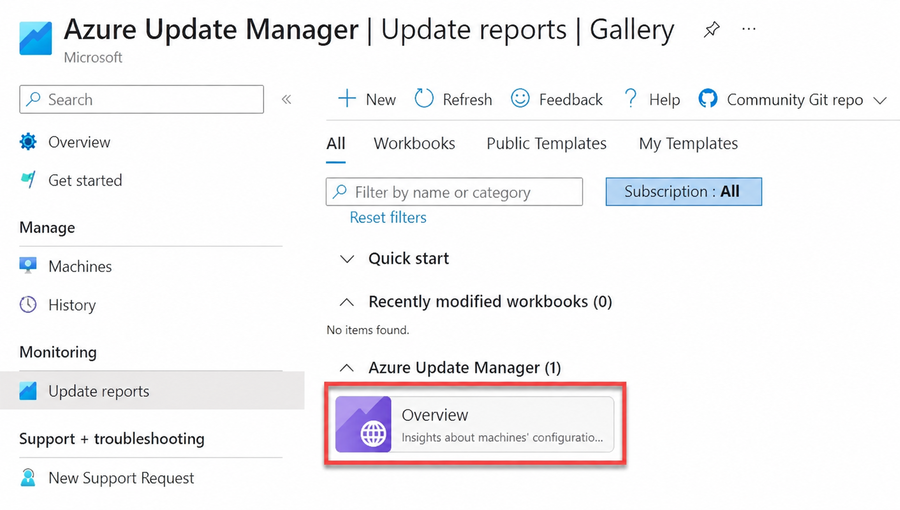

The built-in reports are another way to review compliance and deployments.

7. Staged patch rings

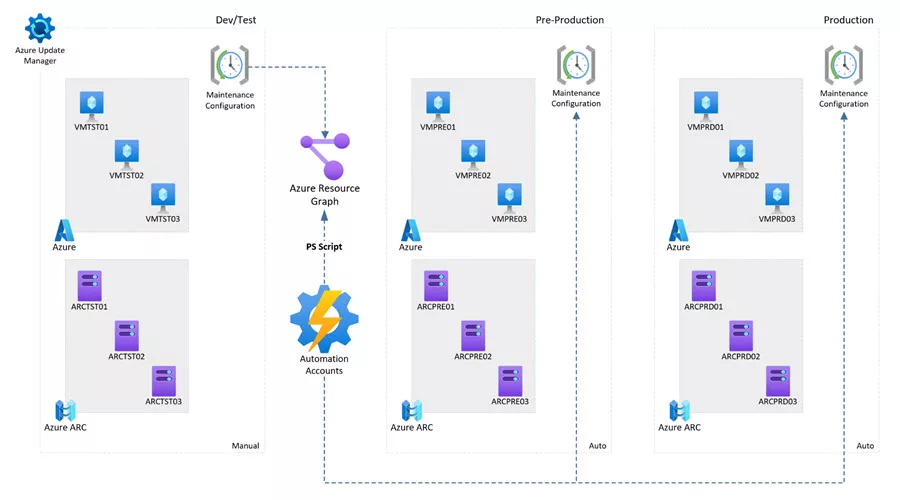

Patching everything at once is asking for trouble. I set up a staged model that moves updates through dev, pre-production, and production rings.

It combines maintenance configurations with Azure Automation. Later stages only get created after earlier ones have had time to prove out.

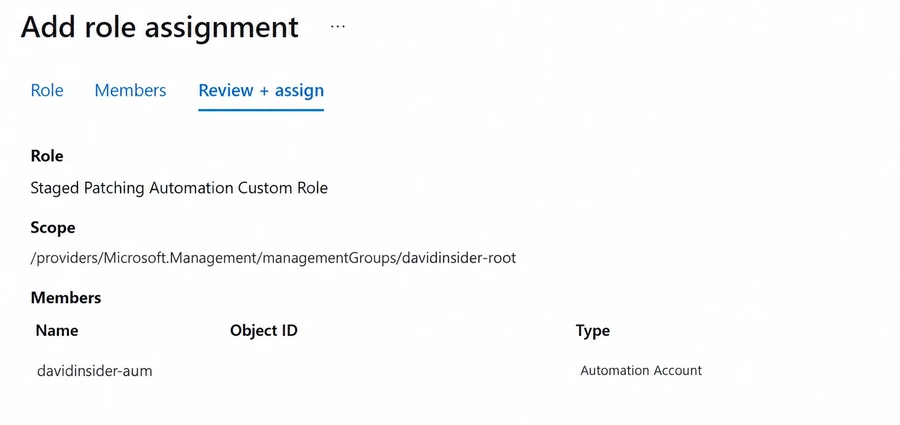

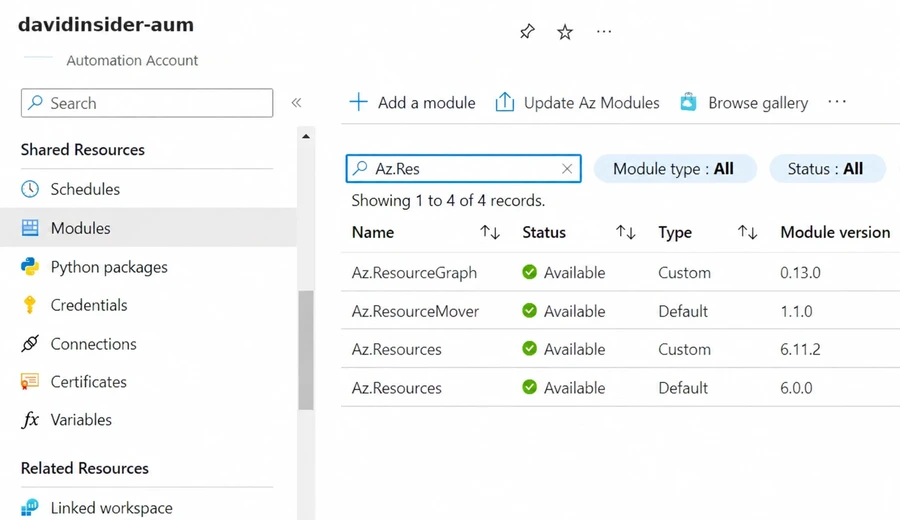

The Automation Account needs modules like Az.Accounts, Az.Resources, and Az.ResourceGraph. I also created a custom role with read access plus the maintenance configuration, assignment, and deployment actions the runbook needs.

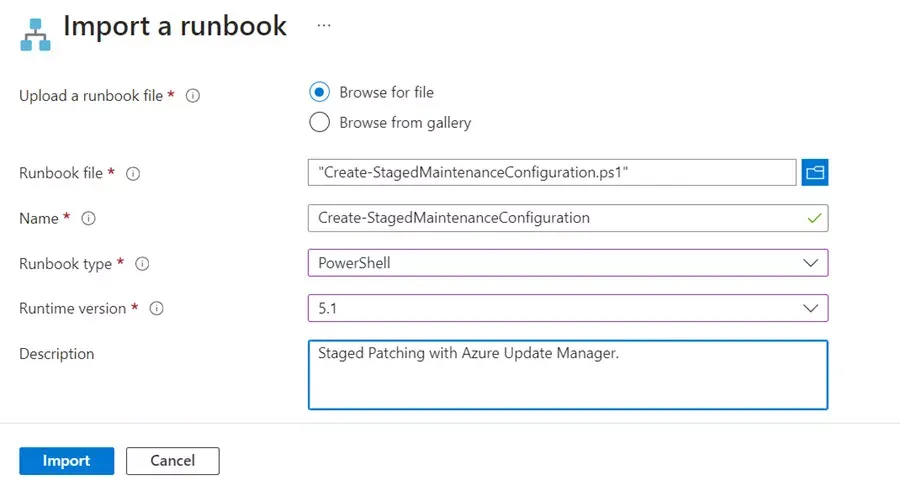

I imported the Create-StagedMaintenanceConfiguration.ps1 runbook.

Machines get grouped with tags like:

aum-stage=dev
aum-stage=preprod
aum-stage=prod
aum-stage=prod-ha-instance1
aum-stage=prod-ha-instance2

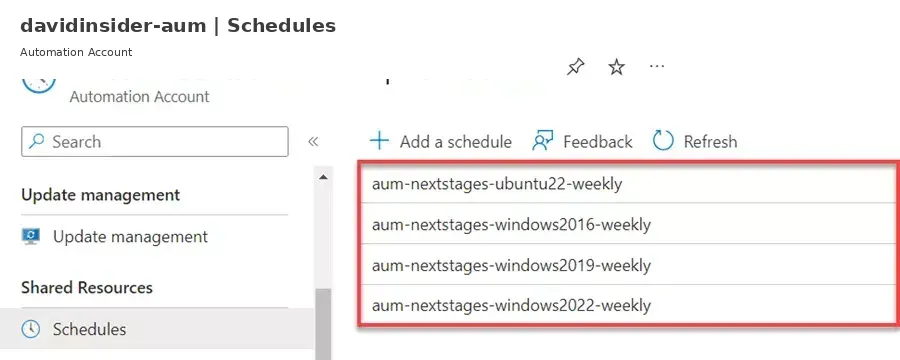

I also grouped by OS with tags like os-name=windows2022 or os-name=ubuntu22. Then I created the first maintenance schedule for one OS group.

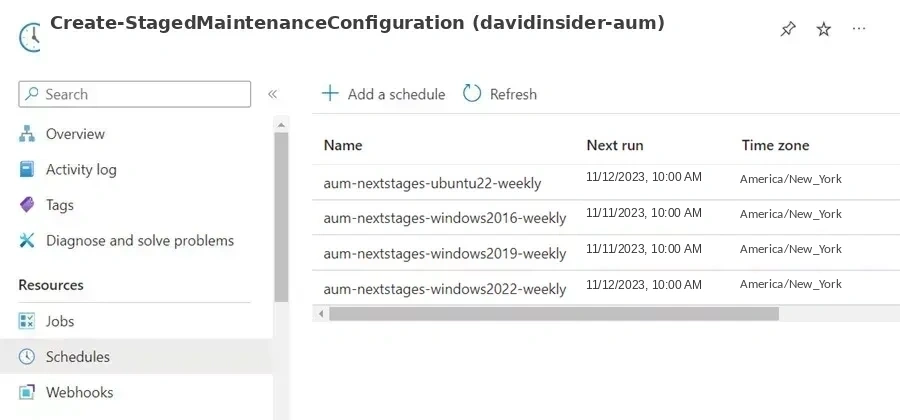

Then I linked the runbook schedule.

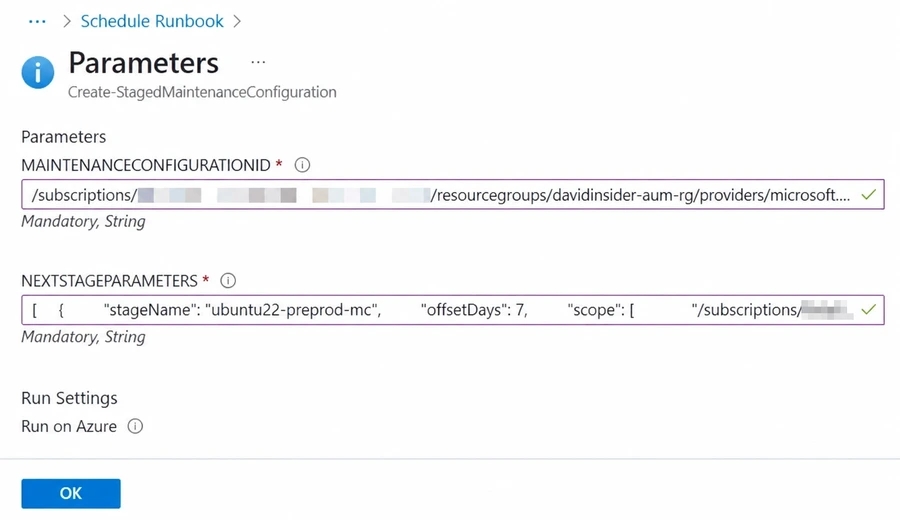

The runbook takes the maintenance configuration ID and a JSON stage definition. That definition can set delay offsets, subscriptions, resource types, tags, locations, and OS.

Now the delay between rings is written down and repeatable. Nobody has to kick off each stage by hand.

8. The Updates view

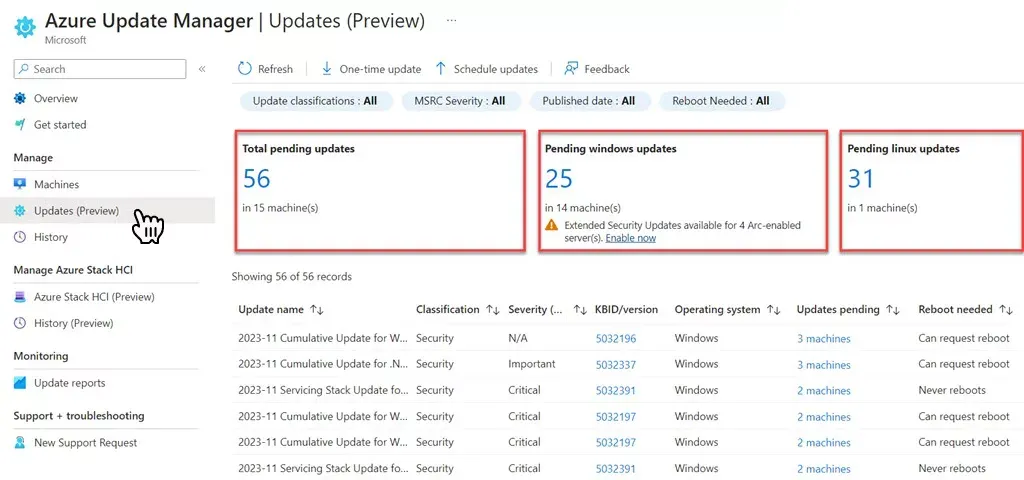

The Updates blade starts from pending updates, not machines. It’s handy when the question is “Which updates are missing, and where?”

9. Governance with policy

Azure Policy holds it all together. It enforces assessment settings, maintenance assignments, and schedules across the hierarchy.

Test policy assignments on a small resource group before rolling them out to a management group. That goes double when remediation or managed identity permissions are involved.

10. Migrating from Automation Update Management

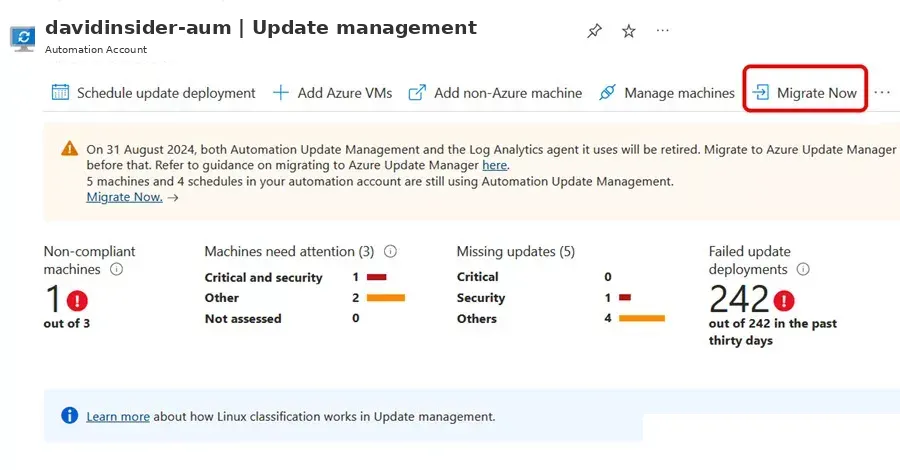

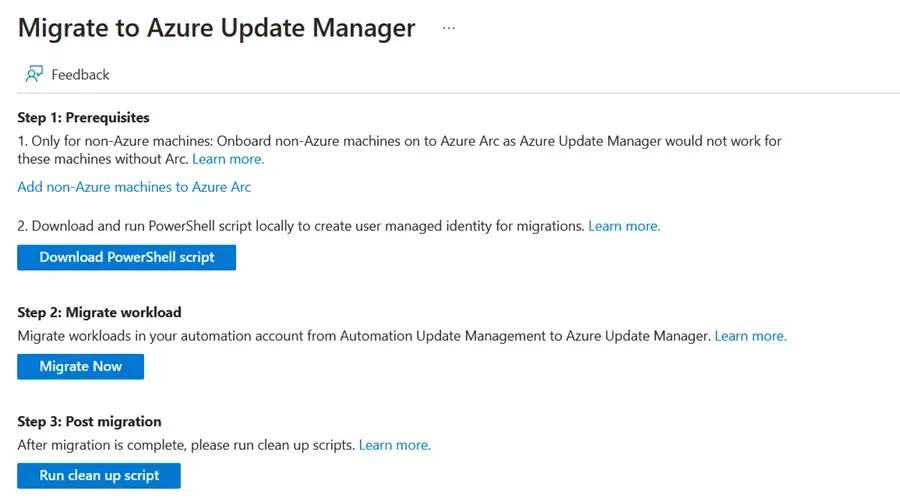

If you still have the retired Automation Update Management setup, Microsoft has a migration tool inside the Automation Account.

It checks prerequisites, migrates workloads, and lists what to do after.

Complex schedules may need extra work. That’s especially true if they use pre/post tasks or saved-search queries. Any deadlines in older migration material are out of date. Check current Microsoft guidance.

The order I’d roll it out

For a real deployment I’d go in this order:

Inventory Azure and Arc-enabled servers
        |
Confirm operating-system and agent support
        |
Enable periodic assessment
        |
Review compliance and missing updates
        |
Create maintenance configurations
        |
Define schedules and update classifications
        |
Enroll machines with static or dynamic scopes
        |
Use Azure Policy for wider governance
        |
Monitor installation results
        |
Introduce staged rings for production

What I learned

The big win is that assessment, scheduling, installation, and reporting all live in Azure’s own management plane. Maintenance configurations give repeatable windows. Azure Policy scales enrollment. Resource Graph shows what actually happened. Staged rings keep an unproven update from hitting everything at once.

The tool doesn’t replace patch governance. I still need clear owners, tested windows, rollback plans, exception handling, and a process for failed installs. What it gives me is one place to apply that process across a mixed set of servers.
